Kristalli 1 Hz Osilatör Devresi

Kristalli 1 Hz Osilatör Devresi

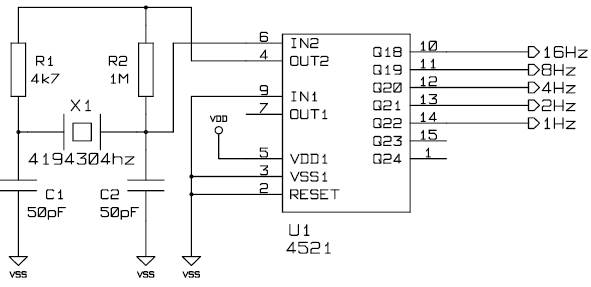

 Her ihtiyaç duyduğunuzda kullana bileceğiniz bu devre kararlı 1 Hz frekans osilatör devresidir. Devrede tek entegre kullanılması ve karmaşık olmaması dolayısıyla her türlü devre tasarımına uyarlanabilir.olmasını sağlamakta  Devrenin şemasında 4521 entegresinin diğer çıkışlarında bulunan frekanslarda gösterilmiştir. Entegrenin 14 nolu pininde Q22 çıkışı 1Hz frekans için kullanılmaktadır.




Malzeme Listesi
U1: 4521
X1: 4,194304MHz Kristal
R1: 4k7
R2: 1M
C1, C2: 50pF
Notlar:
1-Devre CMOS entegrelerle yapıldığı için VDD (besleme) voltajı 5V, 10V, 15V olarak seçilebilir.
2-Devrede kullanılan 4521 entegresinde 16 nolu ucu VDD'ye (+Volt'a), 8 nolu ucu VSS'ye (GND'ye) bağlanmaktadır.
